Software de aplicación técnica. software of technical application.

Software de aplicación técnica

Programa de aplicación en ingeniería eléctrica, área energía de potencia. Permite generar una cantidad de nudos virtuales que se definen de acuerdo a la necesidad.

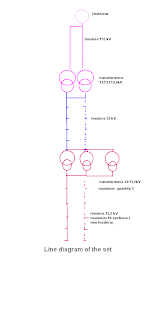

Básicamente el programa parte de una red externa que representa toda la red previa al conjunto. Se ingresa con los valores trifásicos monofásicos, como impedancias.
A continuación la red de alimentación individual o conjunta que alimenta los transformadores de alta tensión ( 132/33/13,2 kV). Se ingresa sección y valores de impedancia directa y homopolar. Se ingresa longitud en kM.
A continuación se ingresa las impedancias de los transformadores de alta tensión.
El sistema provee la posibilidad de alimentar 10 tramos de líneas de 33 kV en los que se fija su longitud y parámetros eléctricos. A la vez es posible considerar una línea en paralelo con igual cantidad de tramos.



Todas las líneas de habilitan con coeficientes especiales ( estado 1 o 0) . Otra manera es considerar que los tramos tienen longitud = 0 para evitar su activación.
Los transformadores de 33/13,2kV , a continuación, se pueden considerar en un grupo de 3 como máximo. Se ingresan sus valores y se considera el de mayor potencia como transformador 1 . El mismo se considera puesto a tierra.
Las líneas de 13,2 kV tienen iguales posibilidades que las de 33 kV. Se programan 10 tramos con la posibilidad de agregar una línea paralela de 10 tramos.
El conjunto posee tablas de cálculo y sectores adicionales que permiten fácilmente calcular parámetros eléctricos de transformadores o seleccionar parámetros de líneas en 33 o 13,2 kV.
Se puede calcular cortocircuitos en cualquier nivel por el agregado de impedancias hasta el punto de interes.
Los cálculos se realizan con la consideración de tener disponible ( mediante cálculo del sistema) la tensión de Thévenin. Estos cálculos se realizan en 33 o 13,2 kV. Las impedancias de falla que se agregan permiten establecer cortocircuitos mínimos.
Mediante el adecuado ajuste en los sectores de ingreso de parámetros es posible " rastrear" el sitio de falla de un sistema. Los sistemas de protección poseen memoria digital y almacenan el valor del cortocircuito en el momento de falla. Ese valor queda registrado pero no se sabe en que punto del sistema se originó.
El programa permite estimar ese valor variando el valor de la longitud de la línea hasta lograr el valor de cortocircuito que se dispone de dato.
El sistema se diseñó para trabajar con impedancias en valor absoluto, por lo cual las impedancias por unidad se traducen previamente mediante el mismo sistema.

Este programa fue realizado por el autor del blog, ingeniero electricista.

Software of technical application < / strong>

Application Program in electric engineering, area energy of power. It allows to generate a quantity of virtual knots that are defined according to the necessity.
Basically the program starts up with an external net that represents the whole net that precedes to the group. It is entered with the corresponding physical levels, as impedances.
Next the net of individual or combined feeding that feeds the high tension transformers (132/33/13,2 kw). It is entered section and levels of direct impedance and homopolar. The longitude is entered in km.
Next it is entered the impedances of the high tension transformers.
The system provides the possibility to feed 10 tracts of lines of 33 kw in those that it is adopted longitude and electric parameters. At the same time it is possible to consider a line in parallel with same quantity of tracts.
All the lines of they enable with special coefficients (state 1 or 0). Another way is to consider that the tracts have longitude = 0 to avoid its activation.
The transformers of 33/13,2kV, next, they can be considered in a group of 3 as maximum. Their levels are entered and it is considered that of more power as transformer 1. The same one is considered grounded.
The lines of 13,2 kw have same possibilities that those of 33 kw. 10 tracts are programmed with the possibility of adding a parallel line of 10 tracts.
The group possesses calculation charts and additional sectors that allow easily to calculate electric parameters of transformers or to select parameters of lines in 33 or 13,2 kw.
You can calculate short circuits in any level for the attaché of impedances until the point of interest.
The calculations are carried out with the consideration of having available (by means of calculation of the system) the tension of Thévenin. These calculations are carried out in 33 or 13,2 kw. The flaw impedances that they are added they allow to establish minimum short circuits.
By means of the appropriate adjustment in the sectors of entrance of parameters is possible to rake the place of flaw of a system. The protection systems possess digital memory and they store the value of the short circuit in the flaw moment. That value is registered but it is not known in that point of the system originated.
The program allows to estimate that value varying the value of the longitude of the line until achieving the short circuit value that prepares like fact.
The system was designed to work with impedances in absolute value, reason why the impedances for unit are translated previously by means of the same system.

This program was carried out by the author of the blog, electrical engineer.



Software technischen Antrages < / stark>

Anwenderprogramm zu elektrischem Ingenieurwesen, Gebietsenergie der Macht. Es erlaubt es, eine Quantität von virtuellen Knoten zu erzeugen, die das Gewähren zur Notwendigkeit definiert werden.
Im Grunde die Programmanläufe auf mit einem externen Netz, das das ganze Netz darstellt, das zur Gruppe vorausgeht. Es wird mit dem korrespondierenden Physischen eingegeben, ist ehrlich, als Scheinwiderstände.
Danach das Netz des Individuums oder verband das Ernähren, das die hohen Spannungstransformatoren füttert, (132/33/13,2 kw). Es wird in Teil und Niveaus von direktem Scheinwiderstand und homopolar eingetreten. Die Länge wird in km eingegeben.
Danach wird es die Scheinwiderstände der hohen Spannungstransformatoren eingegeben.
Das System stellt die Möglichkeit bereit, 10 Gebiete von Falten von 33 kw in jenen zu füttern, daß es Länge und elektrische Parameter adoptiert wird. Zu dem gleichen Zeitpunkt ist es möglich, eine Falte in Parallele mit gleicher Quantität von Gebieten zu betrachten.
Alle Linien von ihnen ermöglichen mit besonderen Koeffizienten, geben Sie 1 oder 0 an. Ein weiterer Weg ist zu betrachten, daß die Gebiete Länge haben, = 0, die seine Aktivierung vermieden.
Die Transformatoren von 33/13,2kV, nächster, sie können in einer Gruppe von 3 als Maximum betrachtet werden. In ihre Niveaus wird eingetreten, und es wird betrachtet, daß von mehr Macht als Transformator 1. Das gleiche wird geerdet gehalten.
Die Linien von 13,2 kw haben gleiche Möglichkeiten der jene von 33 kw. 10 Gebiete werden mit der Möglichkeit programmiert, eine parallele Reihe von 10 Gebieten hinzuzufügen.
Die Gruppe besitzt Kalkulationstabellen und zusätzliche Sektoren, die es leicht erlauben, elektrische Parameter der Transformatoren zu berechnen oder Parameter der Falten in 33 oder 13,2 kw auszuwählen.
Sie können Kurzschlüsse in jedem Niveau bis den Punkt des Interesses für den Attaché der Scheinwiderstände berechnen.
Die Kalkulationen werden mit der Überlegung, verfügbar zu haben, ausgeführt (mittels Kalkulation vom System, der Spannung von Thévenin,). Diese Kalkulationen werden in 33 oder 13,2 kw ausgeführt. Die Fehlerscheinwiderstände, daß sie hinzugefügt werden, daß sie es erlauben, Minimumskurzschlüsse zu begründen.
Mittels der geeigneten Änderung in den Sektoren des Einganges der Parameter ist möglich, die Stelle des Fehlers eines Systemes zu. Die Schutzsysteme besitzen digitales Gedächtnis, und sie lagern den Wert des Kurzschlusses für den Fehlermoment. Dieser Wert wird registriert, aber es wird nicht darin bekannt, daß Punkt des Systemes entstand.
Das Programm erlaubt es zu schätzen, daß Wert, der den Wert der Länge der Linie dafür verändert, den Kurzschlußwert zu erreichen, der sich wie Tatsache vorbereitet.
Das System wurde entworfen, um in Absolutwert mit Scheinwiderständen zu arbeiten, schlußfolgern Sie, warum die Scheinwiderstände für Einheit vorher mittels des gleichen Systemes übersetzt werden.

Dieses Programm wurde vom Autor vom blog, elektrischem Ingenieur, ausgeführt.
